Standard Size

Model             L            W        H          Total Height (mm)

1200             1200      800      2350        2400

1500             1500      800      2350        2400

1800             1800      800      2350        2400

Note:

              a. Above are standard size, customized available.

              b. Draught fan and pipeline are based on the installation site layout, excluded in the fume hood price.

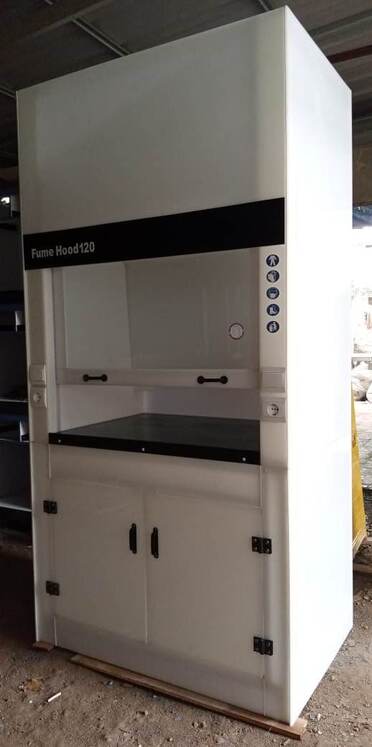

Description

Frame case:

made of  nacked thick 1.0mm steel, with electrolytic degreasing, pickling and phosphating, then electrostatic spraying with professional epoxy resin powder, coating thickness 0.07~0.09mm, has good performance of acid and alkali resistance and anti-corrosion.

Inner lining:

made of laboratory professional phenolic compact laminate.

Air deflector:

made of laboratory professional phenolic compact laminate. Ceremic and other materials are optional.

Bench worktop:

13-16mm Phenolic Resin Chemical Resistant Laminate.

Base cabinet:

made of nacked thick 1.0mm cold rolled steel, finishing powder coating, has good performance of acid and alkali resistance and anti-corrosion.

Glass window:

5mm tempered glass window can stop any place in the moving range.

Water service parts:

PP sink, water faucet are optional.

Installation: Modular design, fume hoods are pre-assembled before shipping, installation is very easy on site.
